Airmar B117DT 50/200kHz Low Profile Bronze Thru hull Depth and Temp with Garmin 8-Pin
Model: B117DT-8G
- Depth and temperature
- 600 W
- Right-angle cable exit saves space and protects transducer if stepped on
- Right-angle cable exit saves space and protects transducer if stepped on
- Low-profile, bronze housing has minimal drag

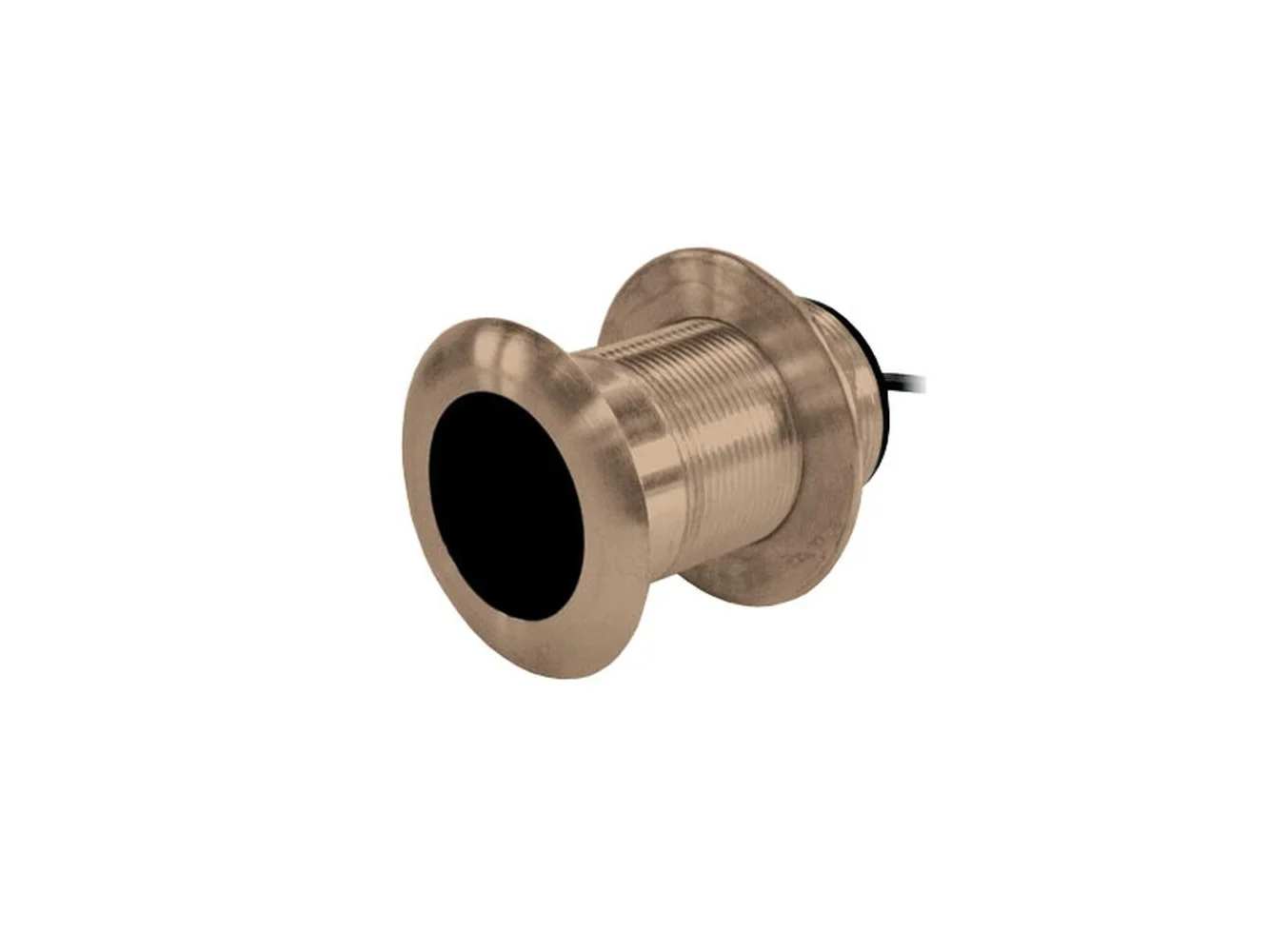

The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16) extending outside of the hulll.
Specifications
| 0.9 kg (2.0 lb.) | |
| Recommended Boat Length | Up to 8 m (25 feet) |
| Hull Material | Fiberglass or wood |
| Hull Deadrise | Best performance through 7 deg. Can accommodate up to a 12 deg. |
| Acoustic Window | Urethane |
| Hole Diameter | 51 mm (2 in) |
“
