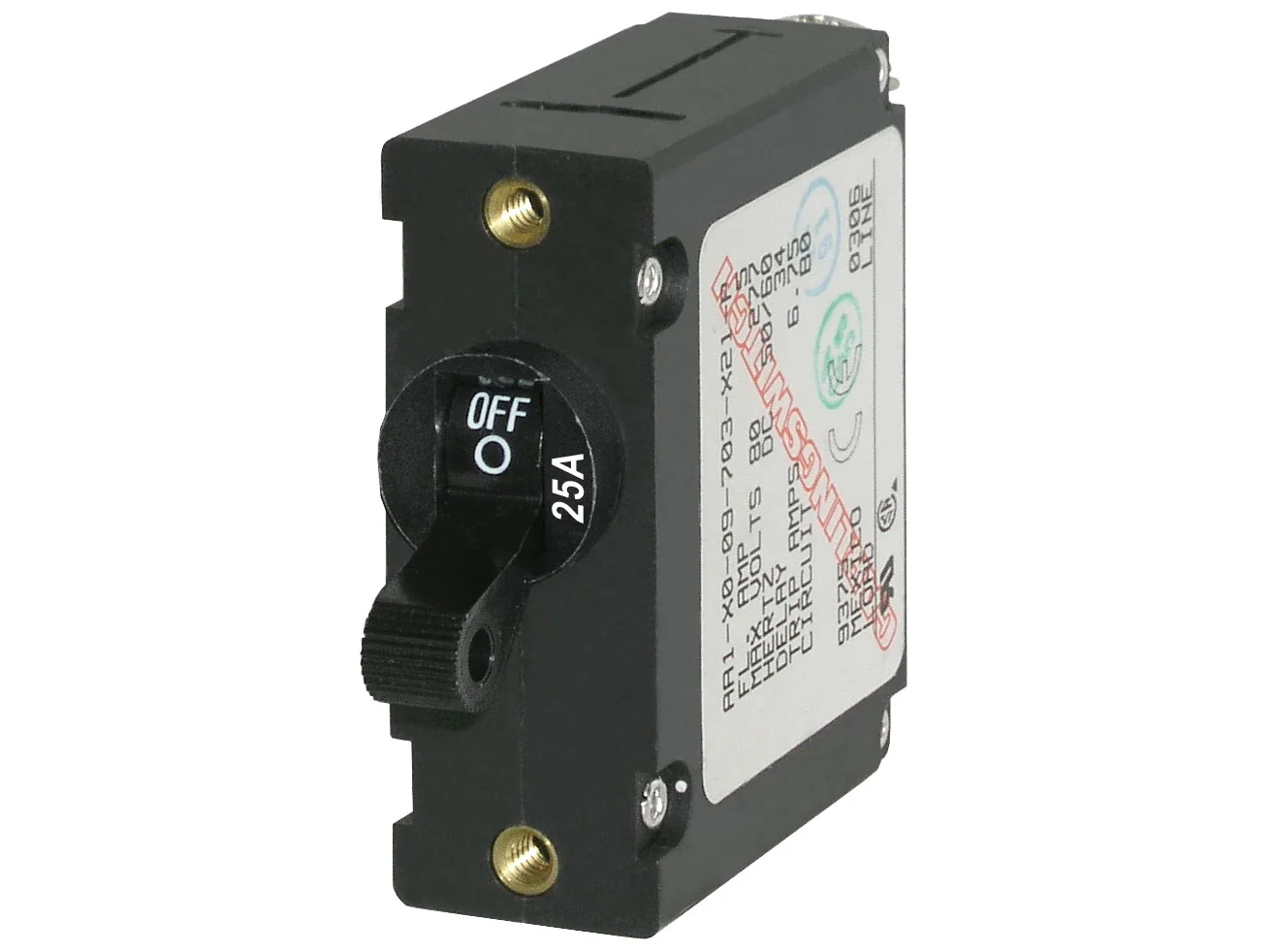

Blue Sea 7216 Circuit Breaker AA1Toggle 25A with Black Toggle
Model: 7216-BSS
Â
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems” electrical panels
- Combines switching and circuit protection into a single device
- “Trip Free” design cannot be held “ON” during fault current condition
Specifications
Â
| Amperage | 25A AC 25A DC |
| Color | Black |
| Actuator Style | Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC Â |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steelc |
