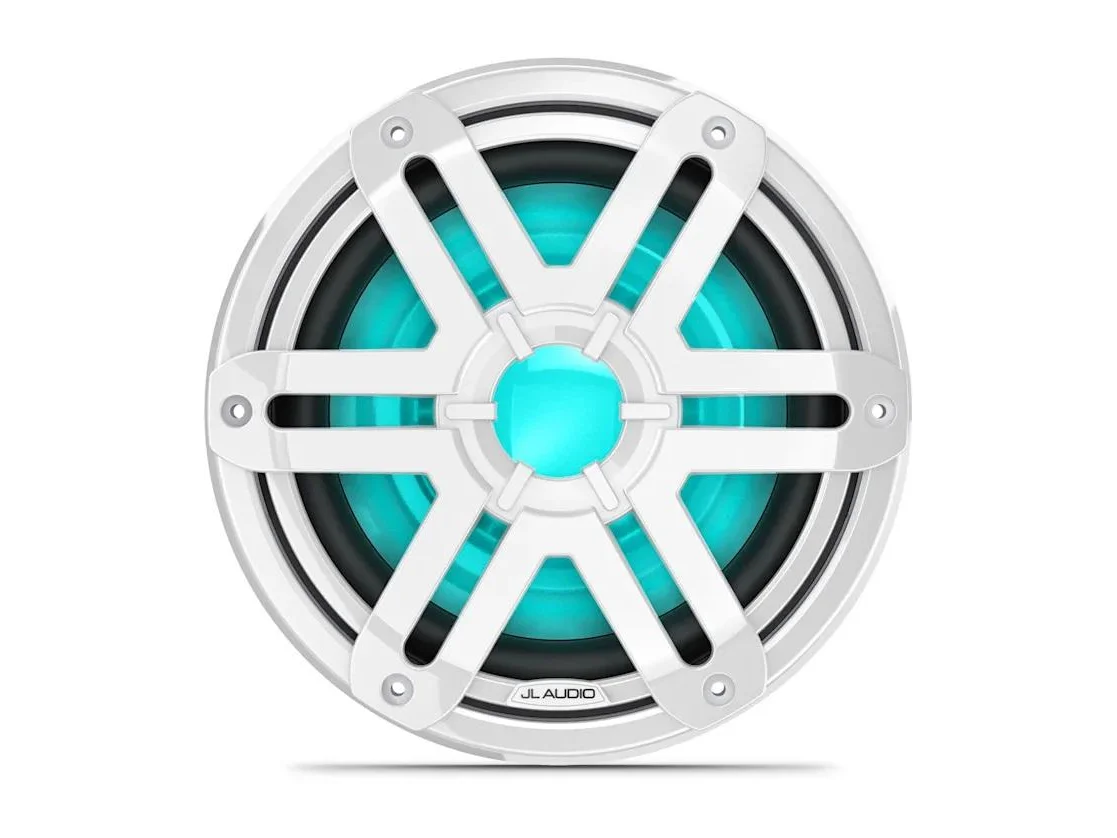

JL Audio M200 10in Marine Subwoofer with LED and White Sport Grille
Model: 010-04759-00
Â
- 250-WATT RMS POWER HANDLING
- RGB LED LIGHTING
- LONG-EXCURSION DESIGN DELIVERS DEEP AND POWERFUL BASS
- INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)
- MARINE-GRADE CONSTRUCTION
Â
This 10-inch subwoofer features an injection-molded polypropylene cone and rubber surround with a marine-grade synthetic spider to keep the cone under control for tight bass response.
Â
Enhance your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or the ActiveCaptain® app.
Â
With 250-watt RMS power handling and a long-excursion design, this subwoofer delivers powerful and deep bass with less distortion.
Â
Match the look of your vessel with white or gray color options along with interchangeable grilles (sold separately).
Â
Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun.
Â
M200 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind them.
Â
Specifications
Â
| General | |
| Warranty | 3 years |
| Color | White Sport Grille |
| Physical dimensions (Diameter) | 10.84″ (275 mm) |
| Physical dimensions (Depth) | 5.16″ (131 mm) |
| Weight | 10.69 lbs (4.85 kg) |
| Water and dust rating | IPX6 |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 250 W |
| LED lighting | yes (RGB) |
| LED supply voltage | 10 – 14.4 VDC |
| LED load current @ 14.4 VDC (max) | 220 mA |
| Cone material | Injection-molded, polypropylene |
| Electrical Features | |
| Compass-safe distance | 116″ (295 cm) |
| Networking & Connections | |
| Speaker connections | Spade connectors |
| LED connection | Flying lead with waterproof connector, 4-conductor 20 AWG wire |
| Mounting Dimensions | |
| Mounting depth clearance | 5.16″ (131 mm) |
| Frontal grille protrusion | 1.85″ (47 mm) |
| Mounting hole | 8.75″ (222 mm) |
| Bolt hole circle | 9.72″ (247 mm) |
| Parameters | |
| Free Air Resonance (FS) | 47.15 Hz |
| Electrical “Q” (Qes) | 1.005 |
| Mechanical “Q” (Qms) | 11.532 |
| Total “Q” (Qts) | 0.925 |
| Equivalent Compliance (Vas) | 0.88 cu ft (24.93 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.39″ (10 mm) |
| Effective piston area (SD) | 48.67 in² (0.0314 m²) |
What’s in the Box:
- One subwoofer with grille
- One 0.25″ female crimpable connector
- One 0.185″ female crimpable connector
- One water-resistant 4-pin connector
- Mounting screws
- Documentation
