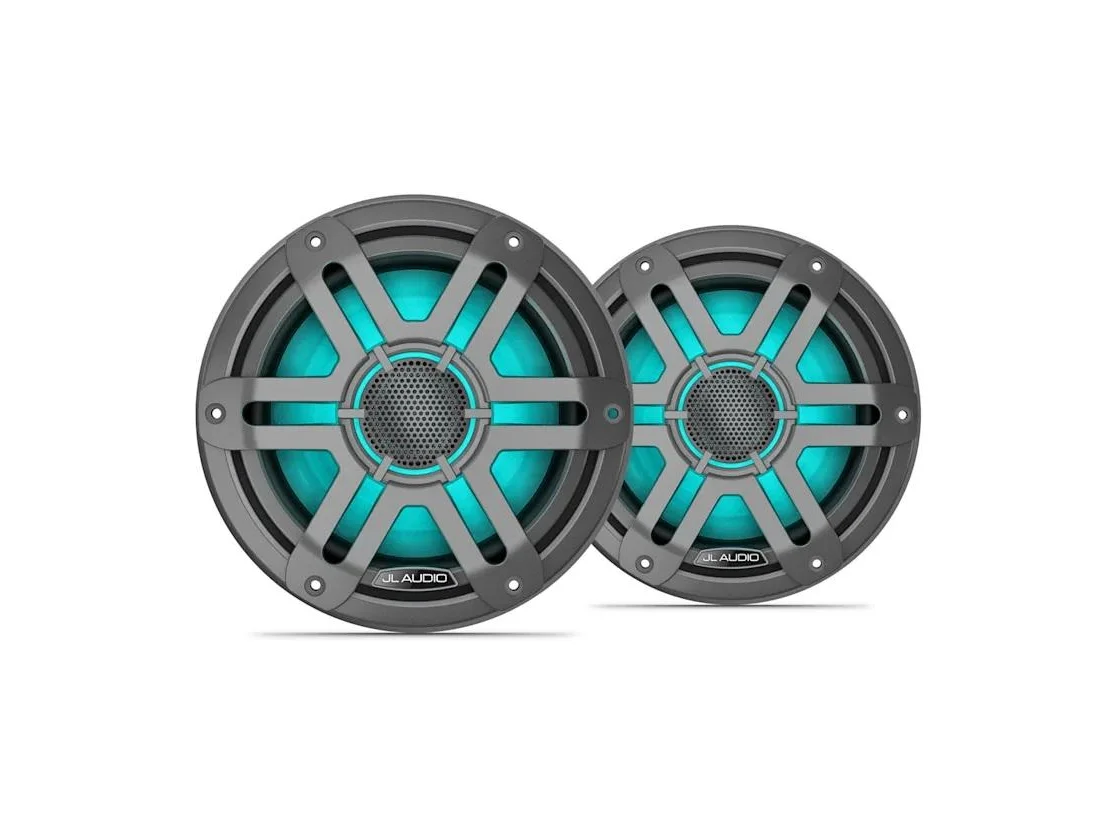

Jl Audio M200 7.7in Marine Speaker Pair with LED and Gray Sport Grille
Model: 010-04757-01
Â
- RGB LED LIGHTING
- SILK DOME TWEETER DELIVERS SMOOTHER SOUND
- INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)
- MARINE-GRADE CONSTRUCTION
Â
Enhance your experience on the water with JL Audio M200 speakers, which bring M-series audio for less.
Â
With 50- to 60-watt RMS power handling, these speakers deliver loud, clean sound with less distortion.
Â
A bridge-mounted 1-inch edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling delivers a smoother and warmer sound for all your cruises.
Â
Match the look of your vessel with white or gray color options along with interchangeable grilles (sold separately).
Â
Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun.
Â
Enhance your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or ActiveCaptain® app.
Â
Specifications
Â
| General | |
| Warranty | 3 years |
| Color | Gray Sport |
| Physical dimensions (Diameter) | 7.7″: 7.70″ (196 mm) |
| Physical dimensions (Depth) | 7.7″: 4.60″ (117 mm) |
| Water and dust rating | IPX6 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 7.7″: 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 7.7″: 88 dB |
| Frequency response (+/- 3 dB) | 7.7″: 45 Hz – 20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 7.7″: 40 – 120 W/Channel |
| LED lighting | yes, RGB |
| LED supply voltage | 10 – 14.4 VDC |
| LED load current @ 14.4 VDC (max) | 140 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1″ (25 mm) |
| Electrical Features | |
| Compass-safe distance | 7.7″: 81″ (205 cm) |
| Networking & Connections | |
| Speaker connections | Flying lead with waterproof connector 18 AWG wire |
| LED connection | Flying lead with waterproof connector, 4-conductor 20 AWG wire |
| Mounting Dimensions | |
| Mounting depth clearance | 7.7″: 3.07″ (78 mm) |
| Frontal grille protrusion | 7.7″: 1.38″ (35 mm) |
| Mounting hole | 7.7″ 6.25″ (159 mm) |
| Bolt hole circle | 7.7″: 6.92″ (176 mm) |
What’s in the Box:
- One pair of speakers with grilles
- Two water-resistant 6-pin connectors (illuminated versions only)
- Mounting screws
- Documentation
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
