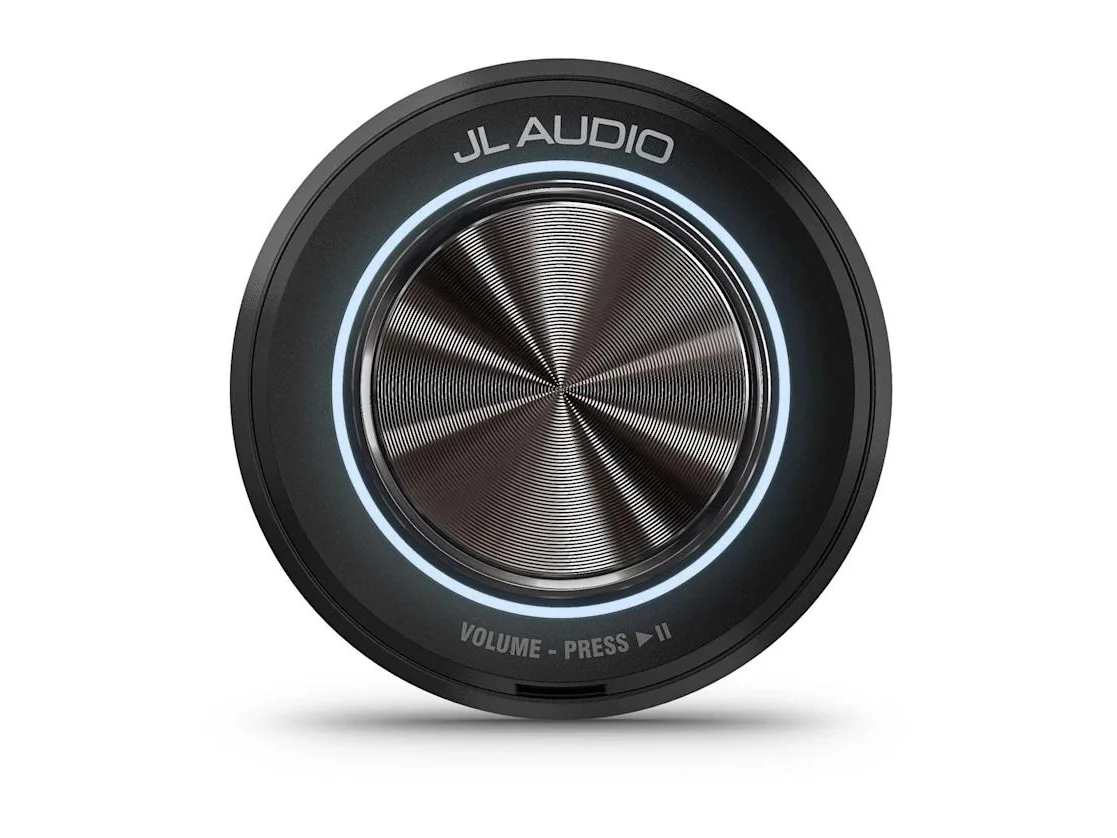

JL Audio R5 Single Stereo Volume Controller
Model: 010-04790-00
Â
- LARGE SINGLE-KNOB CONTROL
- CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
- ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT
- PLAY OR PAUSE WITH THE PUSH OF A BUTTON
- REQUIRES SINGLE 1.5-INCH HOLE FOR INSTALLATION
- IPX7-RATED FOR MARINE ENVIRONMENTS
Â
This easy-to-use volume controller can be front mounted on your boat’s dash, and it controls all audio zones of a single head unit via a large single knob.
Â
Specifications
Â
| General | |
| Warranty | 1 year |
| Physical dimensions (Height) | 2.35″ (60 mm) |
| Physical dimensions (Width) | 2.35″ (60 mm) |
| Physical dimensions (Depth) | 2.04″ (52 mm) |
| Control surface dust/water rating (when properly installed) | IPX7 |
| Operating temperature range | 32° F to 122° F (0° C to 50° C) |
| Current draw (max) | 110 mA |
| Electrical Features | |
| Power Input | 10.8-16 VDC |
| Compass-safe distance | 3.94″ (100 mm) |
| Networking & Connections | |
| NMEA 2000® ports | 1 (Micro-C connector) |
| NMEA 2000® LEN | 2 (100 mA) |
What’s in the Box:
- JL Audio R5 single stereo volume controller
- T-connector for the NMEA 2000® network
- Two screws
- Documentation
