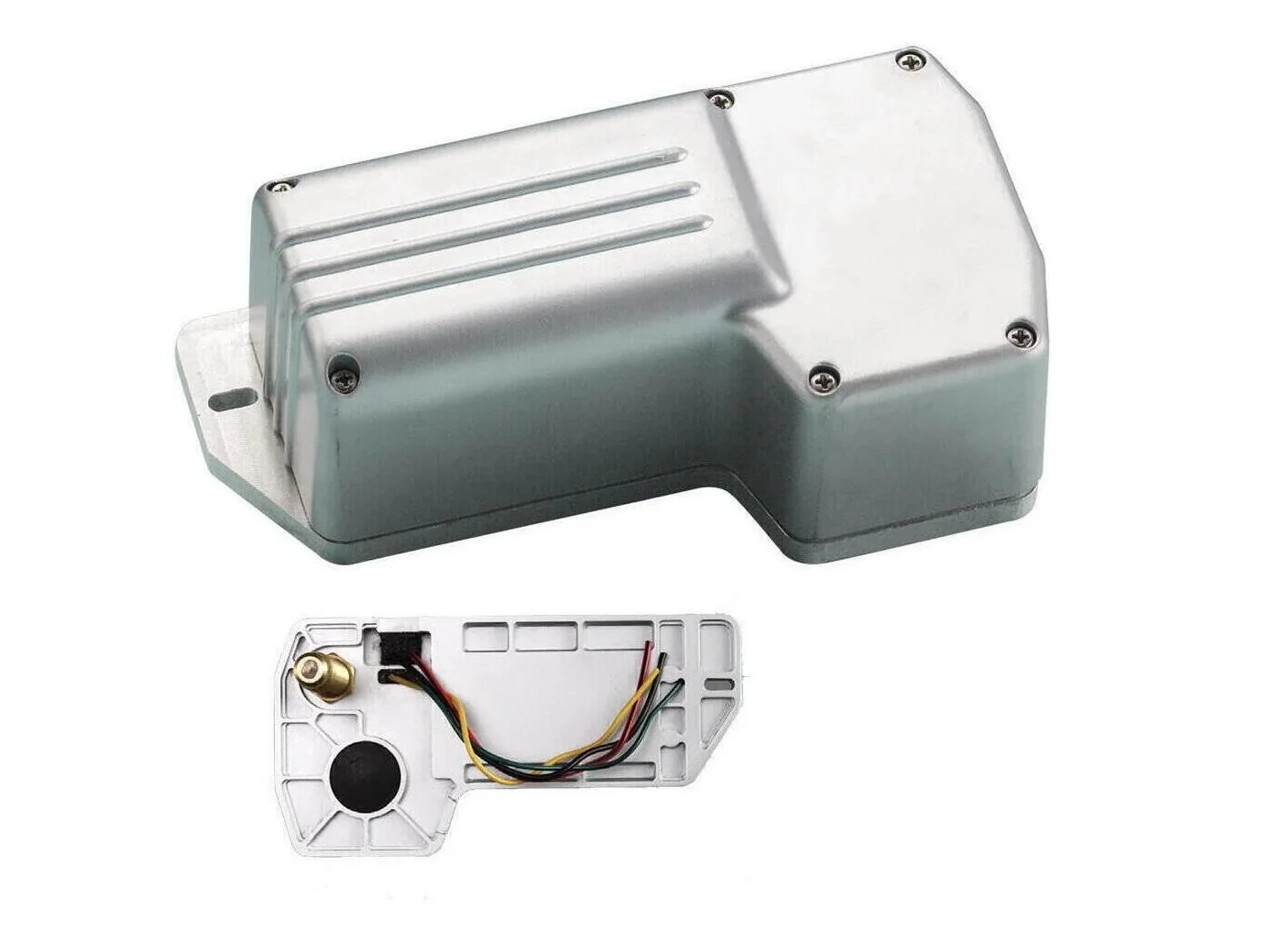

Marinco 71012 12V 1.5 Waterproof Wiper Motor with a 2.5in shaft and 110 degree Sweep
Model: 71012
- Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
- Two speed motor
- Sealed 6″ wire leads, 16 AWG
- Adjustable right or left self parking
- Coast to park
- RF shielded circuitry
- Includes 5A fuse and holder (operating switch not included)
The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22″ Deluxe arm and 22″ Deluxe blade combination or a 20″ Premier arm and 20″ Premier blade combination.
Specifications
| Stall torque | 109 in-lbs (125 kgf/cm; 12.3 Nm) |
| Stall current | 11.5 – 13.0A |
| No load current | 0.5 – 1.2A |
| Voltage | 12V |
| Fuse | 5A |
| Shaft diameter | 0.625″ |
| Dimensions | 7.75″ x 4″ x 2.75″ (L x W x D) |
