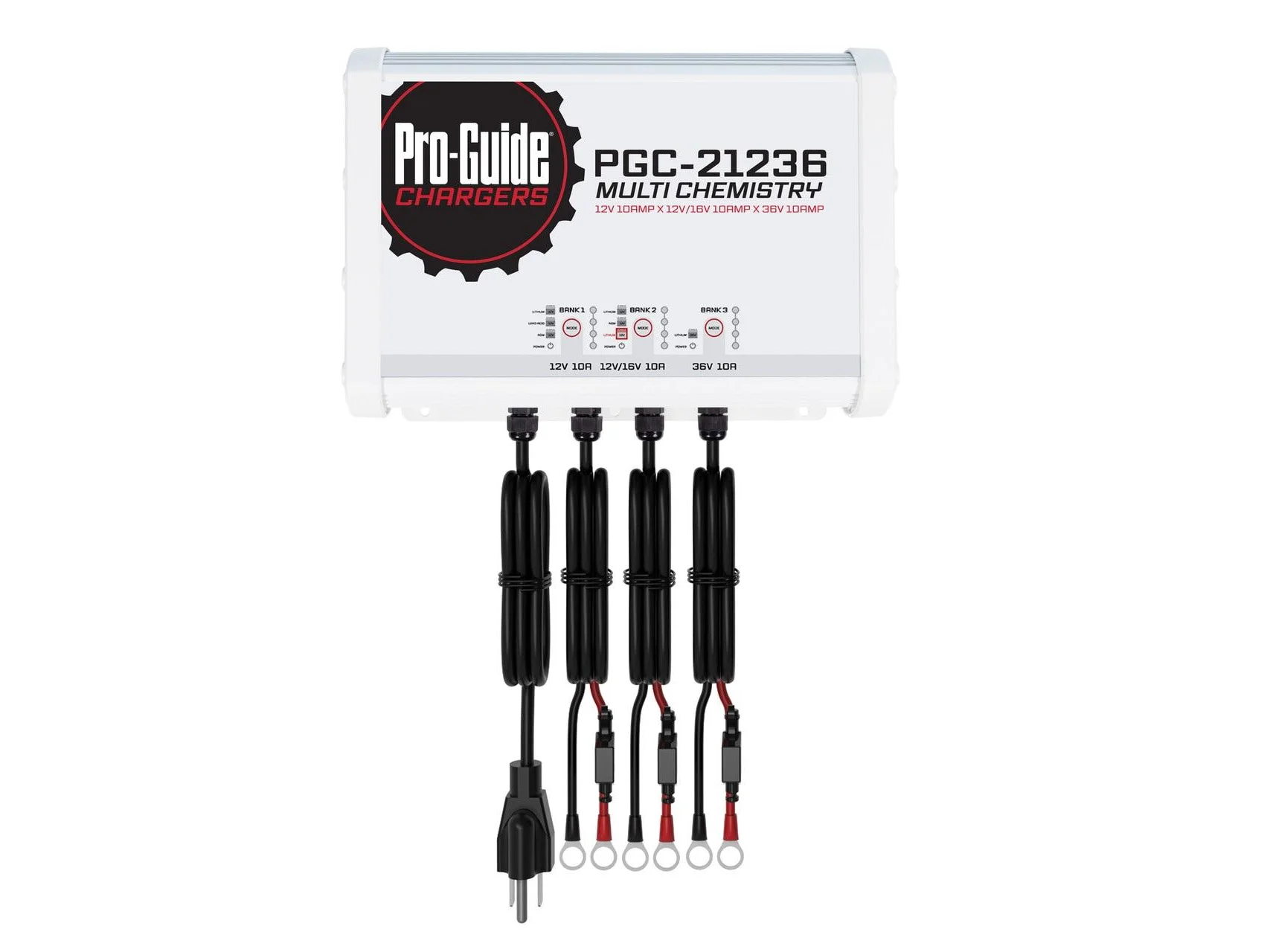

Pro-Guide PGC-21236 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.
Model: PGC-21236
Each 12V Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.
Allowing the charger to supply a single 12V charging bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery’s state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.
Specifications
| Battery Type | 12V Lead Acid / AGM / Lithium, 16V Lithium, & 36V Lithium |
| Output Voltage | DC 12V x 1, DC 12V/16V x1, & DC 36V x 1 |
| Max Output Voltage | 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery |
| Output Current | 10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank |
| Length (in / mm) | 14.7in / 373mm |
| Width (in / mm) | 9.96in / 253mm |
| Height (in / mm) | 3.86in / 98mm |
| Weight (lbs / kg) | 24.7lbs / 11.2kg |
| IP rating | 68 |
